PROCURAL SL2000 greatvision

A sliding door system designed for the construction of very large dimension joinery. Only the narrow mullions are visible. Allows maximum sunilight access.

• no-threshold passage from the home to the patio
• maximum sunlight access
• minimalist design - very narrow, 26 mm wide central mullion
• unlimited width of entire structure
• 3 rows of thermal breaks ensure exceptional thermal insulation

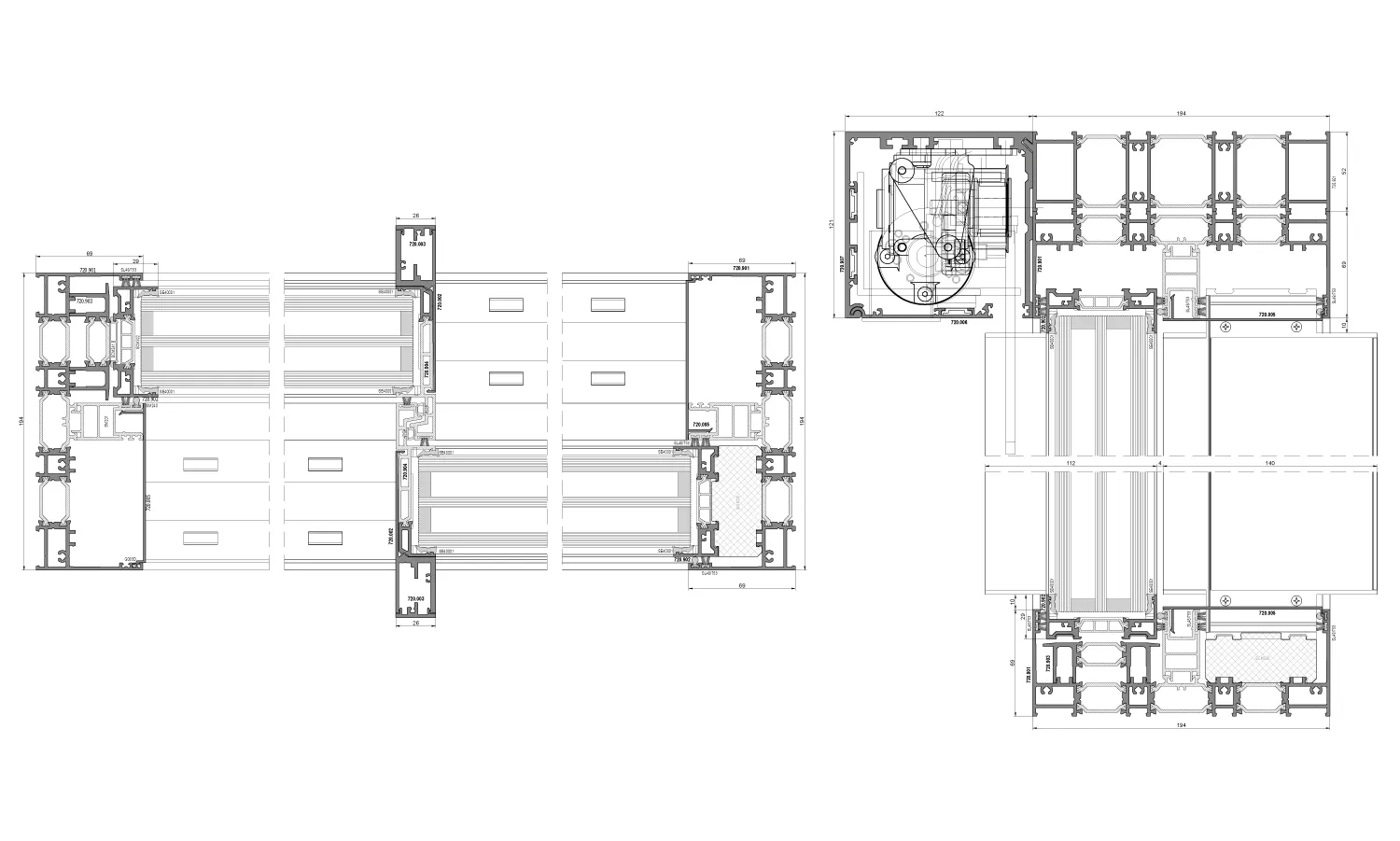

• automatic drives available
• multipoint locks available
• vertical profiles - flush with the frame profiles
• horizontal profiles - visible width is 10.0 mm

• Aluminium profilesEN AW-6060 in acc. with EN 573-3, T66 temper in acc. with EN 515 and fulfilling the requirements of EN 12020-1
• GasketsEPDM synthetic rubber in acc. with EN 12365-1 and TPE in acc. with DIN 16941R3
• Frame depth194 mm
• Sash depth72 mm
• Maximum sash dimensionsW 4000 mm or H 4000 mm
• Maximum sash weightmanual: 500 kg, with drive: 700 kg
• Fillingtriple glazing, thickness: 56 - 60 mm
• Air permeabilityclass 4
• Watertightnessclass up to E900
• Resistance to wind loadclass C2/B3
• Thermal insulationU_f from 1,96 W/m²K, U_w = 0,89 W/m²K ( eference construction dimensions: L 2400 x H 2400 mm, U_g = 0,5 W/m²K, triple glazing).
• Surface finish methodsPE powder coating in acc. with Qualicoat requirements, wide selection of RAL colours; natural and colour anodising in acc. with Qualanod requirements; wood effect coating – surface finish fulfilling high anti-corrosion requirements
• Approvals and quality certificatestype testing in acc. with EN 14351-1 + A2
