PROCURAL PE78 FOLD patio doors

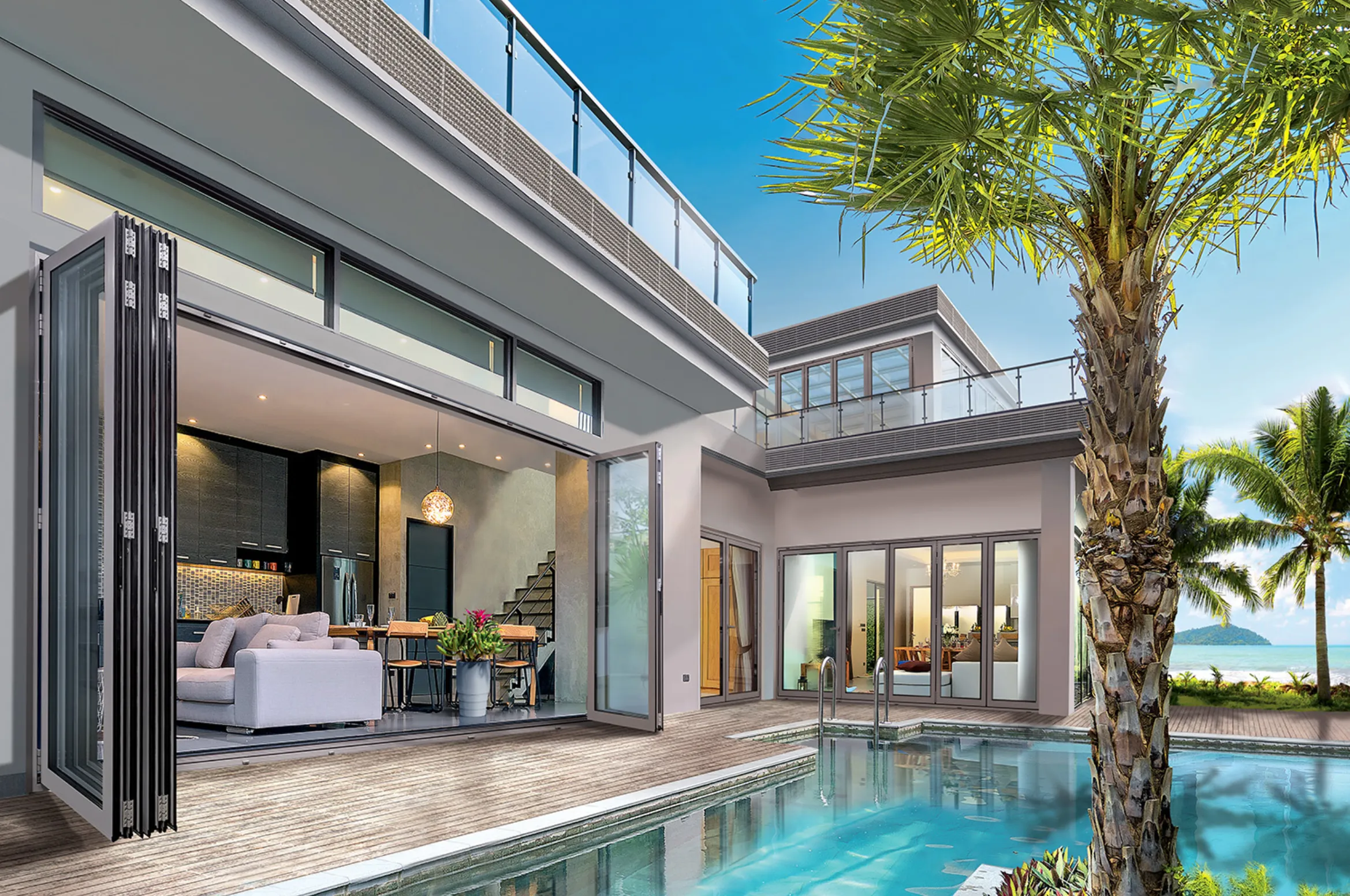

A perfect solution for houses, restaurants and cafes where internal and external spaces are seamlessly blended together.

• multiple sash structures available, both inward and outward opening

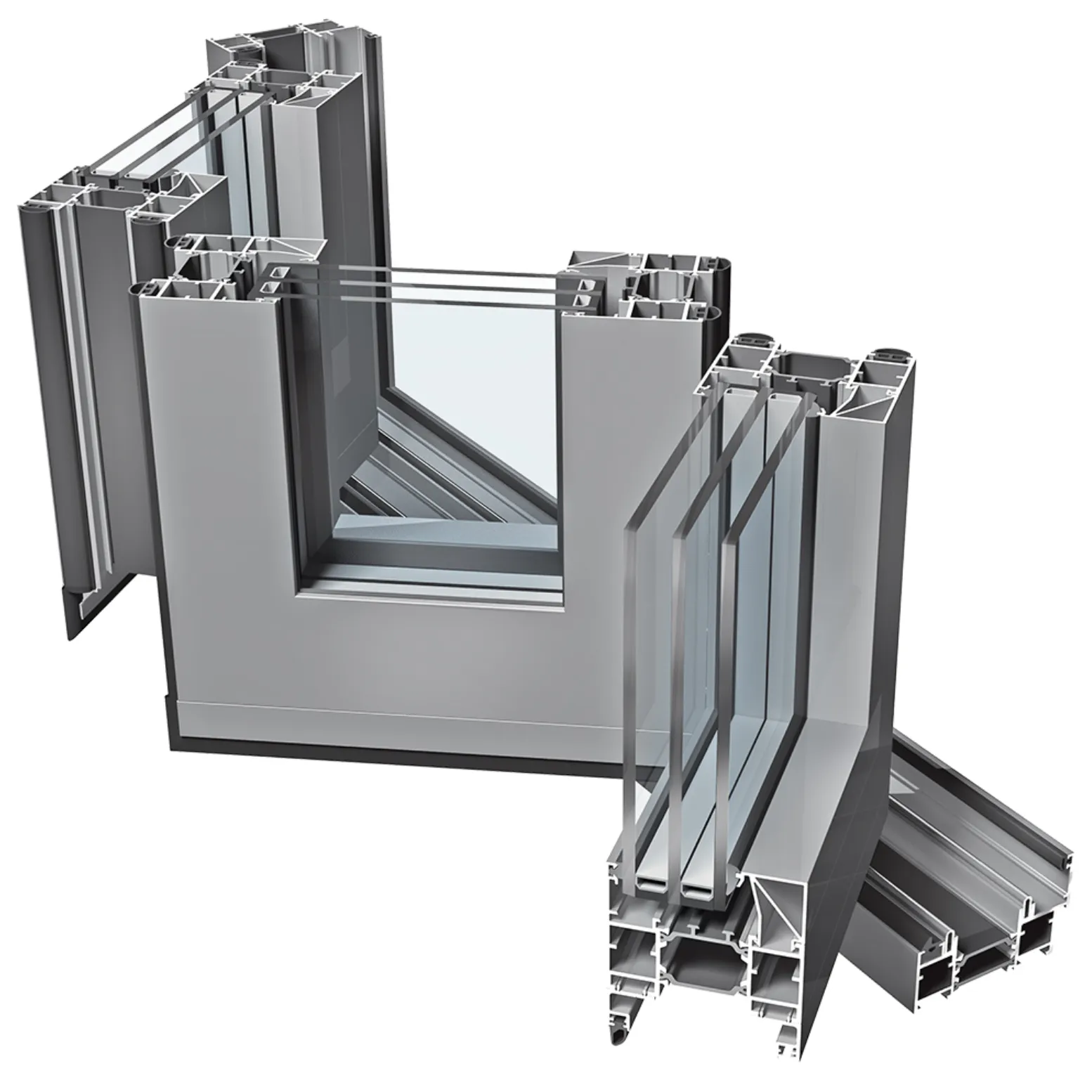

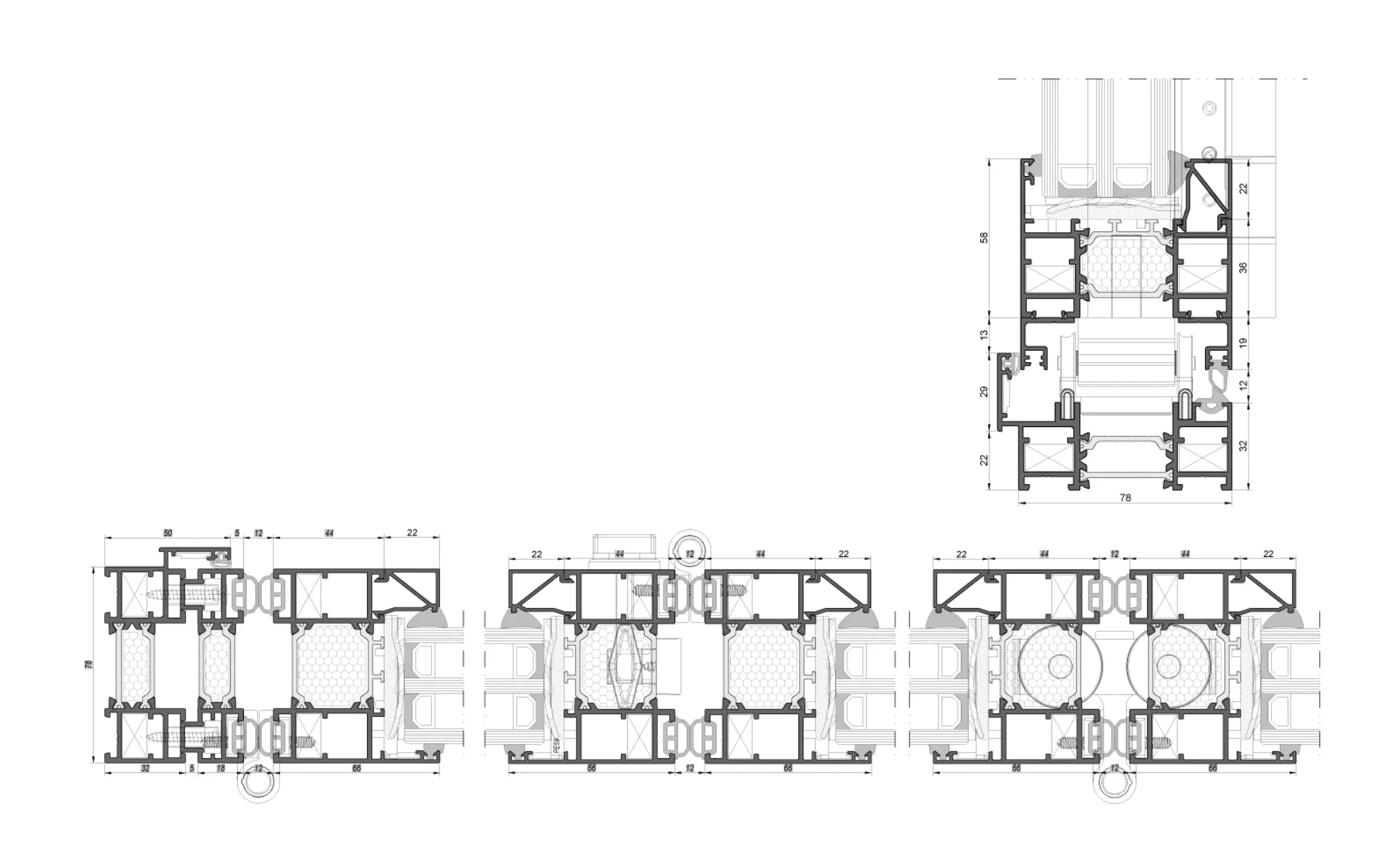

• the three-cavity design of profiles ensures good mechanical durability, enabling large constructions (L ≤ 1200 mm or H ≤ 3500 mm with a maximum sash weight of 120 kg)
• high thermal insulation due to same width 34 mm thermal breaks in frame and sash profiles
• special hardware ensuring end user comfort
• wide glazing range (22 - 60 mm) enables the use of traditional as well as more specialised glazing units
• wide range of threshold solutions
• compatible with other PROCURAL PE78N­­­ solutions



• Technical parameters

• Aluminium profilesEN AW-6060 in acc. with EN 573-3, T66 temper in acc. with EN 515, Al Mg Si 0,5 F22 in acc. with DIN 1725 T1, DIN 17615 T1
• GasketsEPDM synthetic rubber in acc. with DIN 7863 and ISO 3302-01,E2
• Maximum sash dimensionsW ≤ 1200 mm lub H ≤ 3500
• Maximum sash weight120 kg
• FillingIGUs, thickness: 22 - 60 mm
• Air permeabilityclass 4
• Watertightness1200Pa
• Resistance to wind loadclass C3/B3
• Thermal insulationU_f from 1,7 W/m²K, U_w = 1,0 W/m²K (L 2400 x H 2400 mm, U_g = 0,5 W/m²K, triple glazing).
