PROCURAL SL1800TTPROCURAL SL1800TTPROCURAL SL1800TT
Codul produsului : uqmn-20240919100007475123
50 de ani durata de viață a profilului
Calitate și standarte de producție germane
Livrare și instalare în toată Moldova
20 de ani de experiență în domeniul producerii

Caracteristici

Brand PROCURAL
Țara de fabricație Germania

Descriere

Thermally insulated lift-slide system

  • wider thermal breaks, deeper sashes and a glazing range up to 61mm resulting in improved thermal parameters Uw < 0,9W/m2K
  • large dimension structures with up to 6 sashes available
  • very good weathertightness
  • thermal variants: SL1800TT, SL1800TT+, SL1800TT HI, SL1800TT SHI
  • large sash dimensions up to WxH 3300x3000 or 2300x3500

Technical parameters

Aluminium profiles

EN AW-6060 in acc. with EN 573-3, T66 temper in acc. with EN 515 and fulfilling the requirements of EN 12020-1

Gaskets EPDM

synthetic rubber in acc. with EN 12365-1 and TPE in acc. with DIN 16941R3

Frame

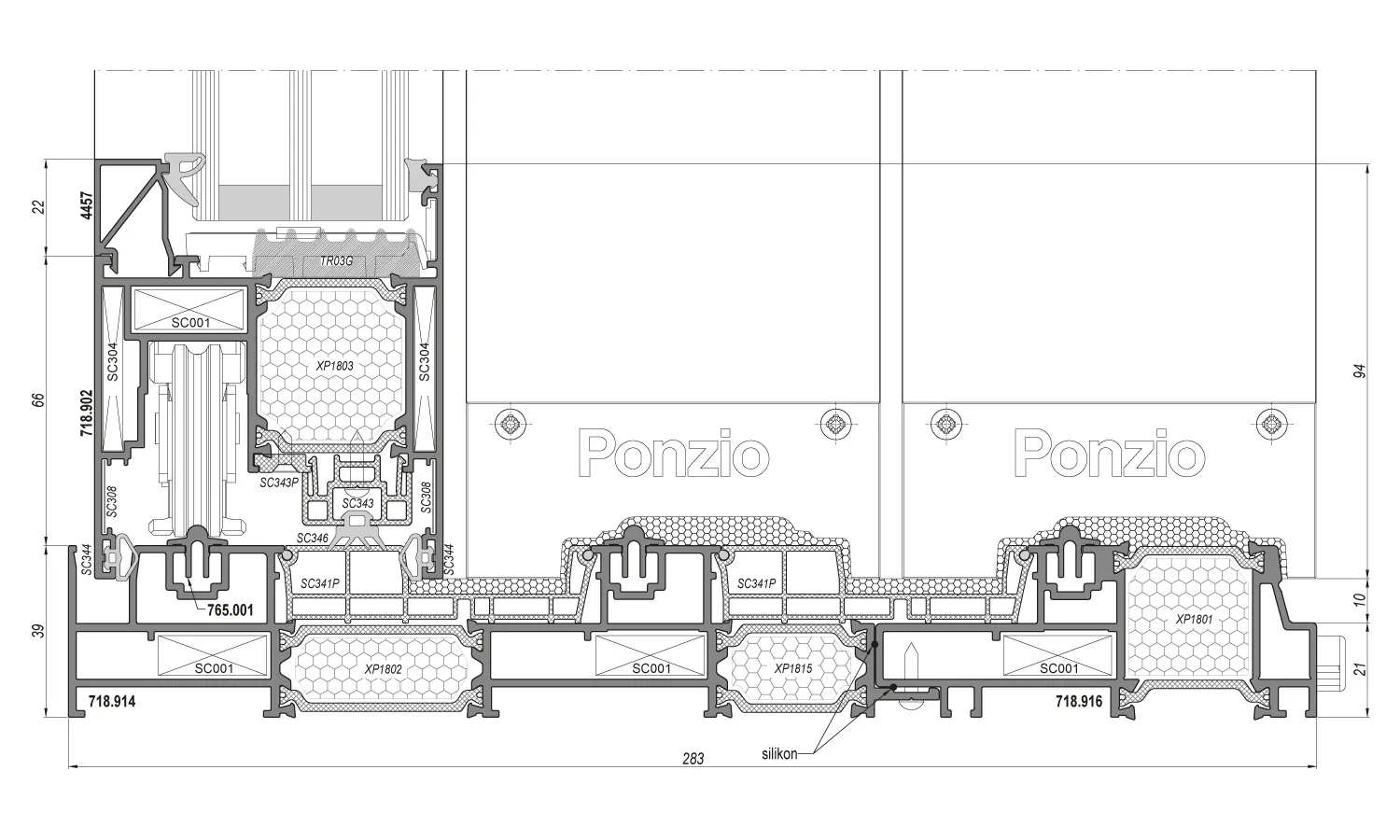

depth184/178 mm for 2-rail, 283/277 mm for 3-rail

Sash depth

79 mm

Maximum sash dimensions

W 3300 x H 3000 mm, W 2300 x H 3500 mm

Maximum sash weight

400 kg

Filling

triple glazing, thickness: 14 - 61 mm

Air permeability

class 4

Watertightness

class E900

Thermal insulation

Uf from1,3 W/m2K, Uw < 0,9 W/m2K (W 2400 x H 2400 mm, Ug = 0,5 W/m2K, triple glazing)

Surface finish methods

PE powder coating in acc. with Qualicoat requirements, wide selection of RAL colours; natural and colour anodising in acc. with Qualanod requirements; wood effect coating – surface finish fulfilling high anti-corrosion requirements

Approvals and quality certificates

type testing in acc. with EN 14351-1 + A2
